instance.yaml Reference

One wrong indent here and the whole haus forgets its own name.

That is the deal you strike with ~/.sanctum/instance.yaml. Every instance-specific value a Sanctum deployment knows about itself is defined in this one file — services, networking, paths, family members, node topology, and secrets references. It is the single source of truth the whole config system reads from.

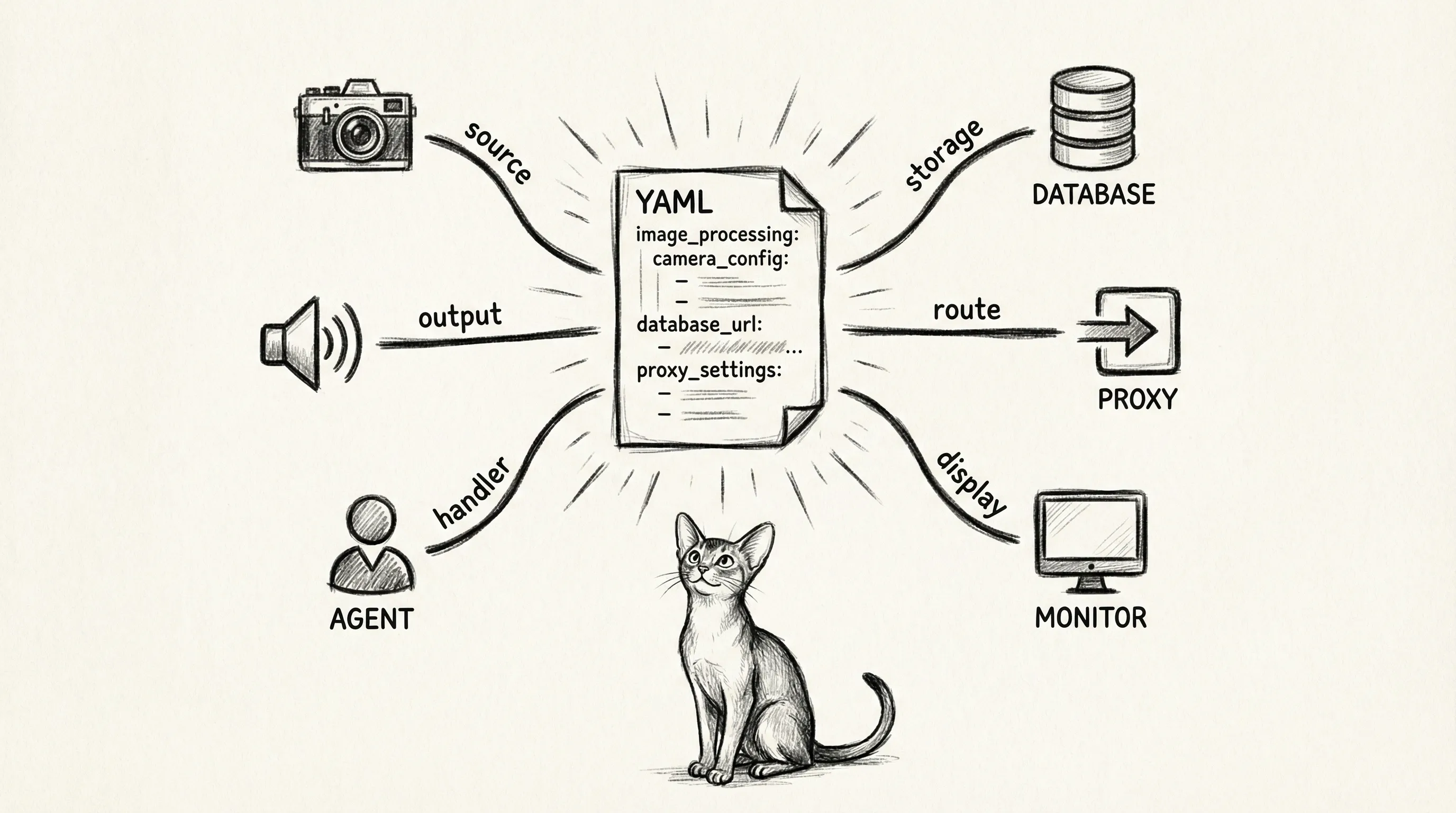

One file. Everything your haus knows about itself is in this file. The name, the network layout, which services run, who lives there. If this file is wrong, everything downstream is wrong. If this file is right, everything downstream has a fighting chance.

A JSON cache is auto-regenerated at ~/.sanctum/.instance.json whenever the YAML changes, via lib/yaml2json.py.

Note

Yes, the YAML is converted to JSON through a Python script so that Bash can read it. YAML to Python to JSON to Bash. The Rube Goldberg machine of config access — but it works on every read in under 50ms, and that’s more than most microservices can claim.

Minimal Example

The absolute minimum to get Sanctum to acknowledge your existence:

instance:
  name: Sanctum Hub
  slug: sanctum-hub
  timezone: America/Montreal

users:
  mac:
    username: neo
    home: /Users/neo
  vm:
    username: ubuntu
    home: /home/ubuntu

network:
  mac_bridge_ip: 10.10.10.1
  vm_ip: 10.10.10.10
  mac_lan_ip: 192.0.2.10
  bridge_interface: bridge100
  vm_ssh_alias: openclaw

---

instance

Top-level identity for this Sanctum deployment. Who you are. Where you are. When you are.

Key	Type	Required	Description
slug	string	Yes	URL-safe identifier used in hostnames, paths, and DNS. Example: sanctum-hub
name	string	Yes	Human-readable display name. Example: Sanctum Hub
timezone	string	Yes	IANA timezone for scheduling and logs. Example: America/Montreal

instance:
  slug: sanctum-hub
  name: Sanctum Hub
  timezone: America/Montreal

Tip

The slug shows up everywhere — DNS records, file paths, tunnel names, dashboard URLs. Choose it once, choose it well. Renaming later is possible but tedious in the way that only infrastructure renames can be.

---

users

OS-level identities on the Mac host and the VM. Unglamorous but load-bearing — every SSH command, every file path, every LaunchAgent plist resolves through one of these. Get them wrong and nothing errors cleanly; things just silently don’t work, which is worse. Each side is a map of a username and a home directory, not a bare string — sanctum_home() and sanctum_expand() read the home path straight off users.mac.home.

Key	Type	Required	Description
mac.username	string	Yes	macOS username on the host machine
mac.home	string	Yes	macOS home directory (absolute)
vm.username	string	Yes	Linux username inside the VM
vm.home	string	Yes	Linux home directory inside the VM

users:
  mac:
    username: neo
    home: /Users/neo
  vm:
    username: ubuntu
    home: /home/ubuntu

---

network

The plumbing. Nobody admires plumbing until it breaks, and then it’s the only thing anyone can talk about. This section defines how the Mac, the VM, and the LAN find each other — a tiny private internet inside your haus, inside your actual internet.

Key	Type	Required	Description
mac_bridge_ip	string	Yes	Mac-side IP on the bridge interface
vm_ip	string	Yes	Static IP of the VM on the host-only network
mac_lan_ip	string	Yes	Mac Mini IP on the local network
bridge_interface	string	Yes	macOS bridge interface name (e.g., bridge100)
bridge_subnet	string	No	CIDR for the Mac↔VM bridge network
lan_subnet	string	No	CIDR for the LAN
vm_ssh_alias	string	Yes	SSH config alias for the VM (e.g., openclaw)

network:
  mac_bridge_ip: 10.10.10.1
  vm_ip: 10.10.10.10
  mac_lan_ip: 192.0.2.10
  bridge_interface: bridge100
  bridge_subnet: 10.10.10.0/24
  lan_subnet: 192.0.2.0/24
  vm_ssh_alias: openclaw

---

paths

Where things live on disk. Every backup script, every log rotation, every skill loader reads from this section. Think of it as the haus’s filing cabinet — except the filing cabinet is also load-bearing, so don’t move it.

Key	Type	Required	Description
openclaw_config	string	Yes	Agent config directory. Default: ~/.openclaw
openclaw_skills	string	Yes	Shared skills repo checkout
logs	string	Yes	Centralized log directory
projects	string	Yes	Projects root (Mac side)
backups	string	Yes	Backup destination directory

paths:
  openclaw_config: ~/.openclaw
  openclaw_skills: ~/Projects/openclaw-skills
  logs: ~/.openclaw/logs
  projects: ~/Projects
  backups: ~/Backups

Caution

The leading ~ is expanded against users.mac.home by sanctum_expand() — not by your shell — so it resolves the same whether a cron job, a LaunchAgent, or a TypeScript helper reads it. That uniformity is the whole point. A literal absolute path works too; just don’t mix conventions inside one instance and expect them to agree.

---

services

Here’s where it gets real. Every service your haus runs — the agent gateway, the voice engine, the haus automation hub, the offline library — each one gets an enabled boolean and, if it listens on a port, a port key. Flip the boolean, regenerate plists, and a freshly enabled service gets its LaunchAgent. Configuration as incantation.

The enabled flag controls whether generate-plists.sh renders the corresponding LaunchAgent. Today a disabled service is simply skipped during generation — its plist isn’t rewritten. If it was already loaded, it keeps running until you launchctl bootout it by hand. “Disabled” means “not regenerated,” not yet “torn down.” Honest beats incantation.

Service Table

Service	Key	Default Port(s)	Description
Agent Gateway	dench	—	OpenClaw/DenchClaw agent gateway (runs in the VM; reached on the host via the Lima-forwarded 127.0.0.1:1977)
Home Assistant	home_assistant	8123	Home automation hub (dedicated HA Green box at 10.0.0.3)
Dashboard	dashboard	3333, 1111	Command center web (3333) + API (1111); the Holocron UI on 3344 has since become the front door
Firewalla Bridge	firewalla_bridge	1984	Firewalla P2P bridge
VM	vm	—	Ubuntu 24.04 guest under Lima
Voice Agent	voice_agent	1138	Yoda voice interaction agent
Sanctum TTS	qwen3_tts	8008	Text-to-speech dispatcher (Rust sanctum-tts, fronting the cbx-yoda engine on 8011; XTTS-v2 retired 2026-04-19)
Council MLX	council_mlx	1337	Council MLX model server (Qwen3.6-35B-A3B, mTLS)
Cloudflare Tunnel	cloudflare	—	Cloudflare Zero Trust tunnel
iCloud Filer	icloud_filer	—	Automatic iCloud filing daemon
Health Center	health_center	2222	Health monitoring dashboard
Tailscale	tailscale	—	Mesh VPN
Memory Vault	memory_vault	42069	Cross-session message store
Watchdog	watchdog	—	Service health monitoring
Kiwix	kiwix	8888	Offline library server
Signal Proxy	signal_proxy	5150	Signal messaging bridge (host-forwarded from the VM)
Outline	outline	3100	Self-hosted wiki

Seventeen of the services are shown above. The full catalogue is 28 keys under services:. On a Mac Mini. Under a desk. Running a haushold.

Note

The LLM routing proxy (proxyd, live on 4040) is not a services: entry — it’s driven by the top-level router: block, which maps model names to backends (council-secure on 1337, plus coder/cloud/spatial). Don’t go looking for services.proxy; it was never there.

Full Example

services:
  dench:
    enabled: true

  home_assistant:
    port: 8123
    homekit_port: 21063

  dashboard:
    port: 3333
    backend_port: 1111

  firewalla_bridge:
    enabled: true
    port: 1984

  vm:
    enabled: true

  voice_agent:
    enabled: true
    port: 1138

  qwen3_tts:
    enabled: true
    port: 8008

  council_mlx:
    enabled: true
    port: 1337

  cloudflare:
    enabled: true

  icloud_filer:
    enabled: true

  health_center:
    enabled: true
    port: 2222

  tailscale:
    enabled: true

  memory_vault:
    enabled: true
    port: 42069

  watchdog:
    enabled: true
    interval: 600

  triage:
    enabled: true
    interval: 30

  kiwix:
    enabled: true
    port: 8888

  signal_proxy:
    enabled: true
    port: 5150
    host: vm

  outline:
    enabled: true
    port: 3100

Checking Service Status

From the shell library:

source ~/.sanctum/lib/config.sh

if sanctum_enabled voice_agent; then
  echo "Voice agent is enabled on port $(sanctum_get services.voice_agent.port)"
fi

sanctum_enabled takes the bare service name — it prepends services. and appends .enabled itself. Pass it services.voice_agent and it dutifully looks up services.services.voice_agent.enabled, finds nothing, and reports disabled. sanctum_get, by contrast, wants the full dotted path. The asymmetry is a footgun; the rule of thumb is “name the service for enabled, name the path for get.”

From TypeScript:

import { isEnabled, get } from './lib/config.js';

if (isEnabled('voice_agent')) {
  const port = get('services.voice_agent.port');
}

---

secrets

The only section of this file that’s about what isn’t here. Sanctum never stores secrets in instance.yaml directly — the config tells you where secrets live, not what they are. A treasure map that says “the chest is buried under the oak tree” without ever containing the treasure. Three secret stores, three levels of paranoia, all of them justified — the full mechanism is the secrets trifecta.

Key	Type	Description
keychain_account	string	macOS Keychain account name for stored tokens
op_vault	string	1Password vault name for credentials
op_item_prefix	string	Prefix for 1Password item names (e.g. Sanctum - Home Assistant)
sops_file	string	Path to the SOPS-encrypted secrets file

secrets:
  keychain_account: sanctum
  op_vault: Private
  op_item_prefix: Sanctum
  sops_file: ~/.openclaw/secrets.enc.yaml

Three stores, three trust models, zero plaintext on this disk. The treasure map can be committed to git. The chests cannot.

---

home_assistant

Where the smart home meets reality. This section doesn’t configure Home Assistant itself — that’s configuration.yaml’s job. This section tells Sanctum what HA needs to know about the physical world: which speakers exist, which cameras are watching, which thermostat controls which zone. The kind of inventory you never think to write down until the third time you troubleshoot from memory.

Key	Type	Description
cameras	map	Camera entity IDs keyed by friendly name
sonos_speakers	list	HA media_player.* entity IDs for the Sonos fleet
hvac_zones	list	Thermostat zones (id, name, temp + humidity sensors)
ecobee	map	Ecobee climate + sensor entity IDs
floor_zones	list	In-floor heating zones
carrier_sensors	map	Carrier furnace/airflow sensor entity IDs

home_assistant:
  cameras:
    front_door: camera.front_door_live_view

  sonos_speakers:
    - media_player.dining_room
    - media_player.living_room
    - media_player.master_bedroom

  hvac_zones:
    - id: climate.main_floor
      name: Ground Floor
      temp_sensor: sensor.main_floor_temperature
      humidity_sensor: sensor.main_floor_humidity

  ecobee:
    climate: climate.main_floor
    occupancy: binary_sensor.main_floor_occupancy

Note

These are Home Assistant entity IDs, not IP addresses — the native Sonos Bridge (port 1969) discovers speakers dynamically by name over SSDP, so a moved speaker re-registers itself and playback never notices. The old static IP list it used to consult is still tolerated in config but ignored for resolution. Inventory, not lookup table.

---

family

Your haus should know who lives in it. This section is what lets the agents greet a kid by name, route an alert to their bedroom speaker, and know which devices are theirs when curfew lands. A short list with outsized consequences — and the screen-time enforcer reads it directly.

Key	Type	Description
children	list	List of family member objects
children[].name	string	Display name
children[].sonos_speaker	string	HA media_player.* entity to address this person
children[].devices	list	Per-device {mac, name, icon} entries (for presence + screen time)
children[].screen_time	map	Wake/block schedule (wake_hour, block_hour, school_days)

family:
  children:
    - name: Kid One
      sonos_speaker: media_player.vr_room
      devices:
        - mac: AA:BB:CC:DD:EE:XX
          name: Kid One's iPad
          icon: phone
      screen_time:
        wake_hour: 8
        block_hour: 21

---

topology

Hive contract for multi-site Sanctum. Optional but recommended once you have more than one haus. Full story: Hive Topology.

Key	Type	Description
design	string	isomorphic-enclave — same local map (.1 FW · .2 Orbi · .3 HA · .10 Mini) at every site
hive	string	name-only — cross-site address by node name / MagicDNS, never bare 10.0.0.x
identity_pins	string	Path hint to firewalla-toolkit identity-pins.json (body pins)

topology:
  design: isomorphic-enclave
  hive: name-only
  identity_pins: openclaw-skills/firewalla-toolkit/config/identity-pins.json

---

nodes

Multi-site hive roster. Each key is a stable node id (manoir, chalet, mbp) matching ~/.sanctum/.node_id on that machine. The hub runs everything; satellites run what they can; mobile devices check in when they feel like it. Shape: node topology · hive rules: hive topology.

CLI: sanctum node list | get | whoami | resolve · adopt writes satellites via sanctum node adopt.

Key	Type	Description
<node_id>	map	Stable short node identifier (e.g. manoir, chalet)
.type	string	hub, satellite, mobile, or sensor
.tier	string	primary (SoT hub), peer (future multi-hub), or edge
.site	string	Design-map site key (matches identity-pins site)
.display_name	string	Human-readable label
.location	string	Logical location tag (e.g. home, chalet, road)
.host	string	LAN hostname/IP or MagicDNS stem; empty when name-only
.tailscale_ip	string	Optional cached Tailscale IP (prefer resolve live)
.tailscale_name	string	MagicDNS stem — preferred for sanctum node resolve
.ssh_user	string	SSH username (readers also accept legacy .user)
.capabilities	list	Static offers (vault_authority, inference, ha_site, …)
.sync.hub	string	Satellite: primary hub node id
.online	bool	Last-known reachability (optional cache)
.vm	map	Hub only: nested host / ssh_user / ssh_alias for the guest
.services	map	Optional per-node service overrides (satellites)
.adopted	string	ISO date when sanctum node adopt registered this satellite

nodes:
  manoir:
    type: hub
    tier: primary
    site: manoir
    display_name: Manoir
    tailscale_name: manoir
    ssh_user: bert
    capabilities: [vault_authority, inference, ha_site]
    vm:
      host: 10.10.10.10
      ssh_user: ubuntu
      ssh_alias: openclaw

  chalet:
    type: satellite
    tier: edge
    site: chalet
    display_name: Chalet
    host: chalet
    tailscale_name: chalet
    ssh_user: bert
    sync:
      hub: manoir
    capabilities: [local_inference, satellite]
    adopted: '2026-07-18'

Node Types

Type	Description
hub	Full infrastructure; exactly one tier: primary; peers allowed later
satellite	Secondary site with reduced stack (no cathedral)
mobile	Laptop or portable device
sensor	Headless monitoring device

The satellite knows it’s not the hub. It doesn’t try to be. It runs what it needs, phones haus over Tailscale, and keeps the lights on when the internet goes out. Self-aware infrastructure is underrated.

---

Example Config File

An annotated example is available at ~/.sanctum/instance.yaml.example and can be used as a starting point for new instances.

---

JSON Cache

The YAML config is automatically converted to a JSON cache at ~/.sanctum/.instance.json — a nested object tree mirroring the YAML, which the libraries walk with dotted-path lookups (services.voice_agent.port). Nothing is flattened; the dots in the query are traversal, not key names. The shell and TypeScript helpers both read this file for fast lookups. If you edit instance.yaml manually, regenerate the cache:

python3 ~/.sanctum/lib/yaml2json.py

Tip

You usually don’t need to run this manually. The config libraries detect stale caches by comparing modification timestamps. But if things are acting strange and you’ve just edited the YAML, this is a good reflex — like washing your hands before surgery.

Get the indentation right and the whole constellation knows its own name. Get it wrong and it forgets — quietly, without an error, which is the worst way anything ever breaks. So we treat this file the way it deserves: edit it slowly, regenerate the cache, and read it back once before we walk away.
